Gun Gäntappar för genomgående och blindhål, Metriska gängor Dormer EP10M18X1.5
Maskingängtapp, EP10
Se teknisk informationReferenser
Dormer:EP10M18X1.5
Rubix:6188428
EAN:7320760137512

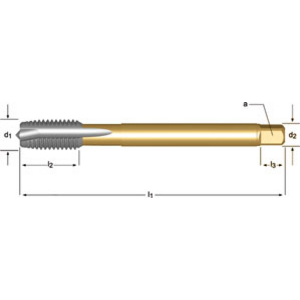

Produktinformation : GÄNGTAPP M18x1.50mm HSS-E BLANK DIN 374 - EP10M18X1.5 - DORMER
HSS-E Machine tap for metric-fine thread TiN coated DIN 374 form B cut 2.5xD continual holes for steel <1200 N/mm². Copper Brass en bronze <200 HB. Aluminium and aluminium-magnesium alloys.
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängdiameter | 18 mm |
|---|---|
| Gänga | 1.5 mm |
| Material | hss-e / pm |
| Beläggning | uncoated |
| Tolerans | 6h |
| Gängning | m18 x 1,5 (iso metric fine) |
| Total längd | 110 mm |
| Borrdiameter | 18 mm |
| Diameter fäste | 11 mm |
| Fyrkantsadapter | 14 mm |
| Gängriktning | rätt |
| Inmatning | 14 |
| Din standard | din 374 |
| Gängdjup | 24 mm |
| Kapacitet längd | 45 mm |
| Skafttyp | square (key-/square drive) |
Att visa UNSPSC/ECL@SS/Customs
1 249,07 kr Ex moms
/ Styck
1 561,34 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
