Referenser
Dormer:EP204-40
Rubix:6188385
EAN:7320760138021
Teknisk sammanfattning
| Gängning | unc 4-40 |
|---|---|
| Gängdiameter | 2.845 mm |
| Typ | amerikanska genomgående hål |

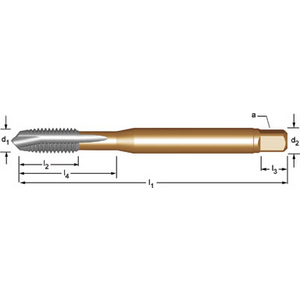

Produktinformation : UNC Maskingängtappar Spåndrivande skär, EP204-40 - 5973735 - DORMER
HSS-E machine tap for UNC thread uncoated DIN 2184-1 form B chip breaker 2.5xD through holes for steel <1200 N/mm². Copper. Brass and bronze <200 HB. Aluminium and aluminium-magnesium alloys.
Användningsområden
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
• Aluminium Magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium alloyed silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed silicon >10% whisker-reinforced aluminium alloys magnesium alloys (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
• Aluminium Magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium alloyed silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed silicon >10% whisker-reinforced aluminium alloys magnesium alloys (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | unc 4-40 |
|---|---|
| Gängdiameter | 2.845 mm |
| Typ | amerikanska genomgående hål |
| Med kylspray | nej |
| Gängriktning | rätt |
| Borrdiameter | 2.35 mm |
| Diameter fäste | 2.7 mm |
| Fyrkantsadapter | 3.5 mm |
| Gängdjup | 18 mm |
| Helix vinkel | 30 ° |
| Beläggning | gold |
| Total längd | 56 mm |
| Material | hss-e |
| Antal trådar per tum | 40 |
| Tolerans | h2 (2b) |
| Skafttyp | square (square drive) / fixed saw slot |
Att visa UNSPSC/ECL@SS/Customs
409,52 kr Ex moms
/ Styck
511,90 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
