Referenser
Dormer:EP313/4
Rubix:6188336
EAN:7320760138557
Teknisk sammanfattning
| Gängning | unf 3/4-16 |
|---|---|
| Gängdiameter | 19.05 mm |
| Typ | amerikanska genomgående hål |
Dokumenter

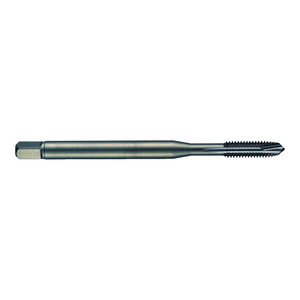

Produktinformation : UNF Maskingängtappar Spåndrivande skär, EP313/4 - 5973894 - DORMER
Universal machine tap for through holes and threads UNF with thread tolerance 2B. Version in HSS-E PM (cobalt) with steam-tempered surface for better adhesion of cutting oil. This also makes it suitable for tapping in stainless steels. Equipped with shell cutting for better cutting the hole and propelling the chip. Cut in accordance with Form B (3.5-5 courses). Dimensions according to DIN 5156. Suitable for threads up to 2.5xD
Styrkor
Superb performance in a range of materials
Short thread length means low torque and better chip evacuation
Manufactured from high speed cobalt steel for unbeatable toughness, edge strength & wear resistance
Available in bright or steam tempered (ST) finish, with 2B finish tolerances
Premium substrate with steam oxide surface treatment
reduces wear and chip welding in abrasive or harder
Short thread length means low torque and better chip evacuation
Manufactured from high speed cobalt steel for unbeatable toughness, edge strength & wear resistance
Available in bright or steam tempered (ST) finish, with 2B finish tolerances
Premium substrate with steam oxide surface treatment
reduces wear and chip welding in abrasive or harder
Användningsområden
Suitable for tapping and through holes in a wide range of materials
Teknisk information
Attribut
| Gängning | unf 3/4-16 |
|---|---|
| Gängdiameter | 19.05 mm |
| Typ | amerikanska genomgående hål |
| Med kylspray | nej |
| Gängriktning | rätt |
| Borrdiameter | 17.5 mm |
| Diameter fäste | 14 mm |
| Fyrkantsadapter | 11 mm |
| Gängdjup | 30 mm |
| Beläggning | steam tempered |
| Total längd | 125 mm |
| Material | hss-e |
| Antal trådar per tum | 16 |
| Tolerans | 2b |
Att visa UNSPSC/ECL@SS/Customs
1 801,68 kr Ex moms
/ Styck
2 252,10 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
