Referenser
Dormer:F1701/2
Rubix:6197674
EAN:7320760104842

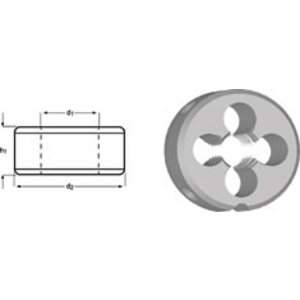

Produktinformation : G(BSP) Gängsnitt, Spåndrivande Skär, F1701/2 - 5977726 - DORMER
HSS cutting plate for gas thread ISO 2568 for non-alloyed steel <850 N/mm². Cast iron Aluminium en aluminium- magnesium alloys Si <10%.
FILIERE 1/2 BSP F170 45 CLASS A HSS
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | 1/2 |
|---|---|
| Burdiameter | 45 mm |
| Material | hss |
| Diameter | 20.96 mm |
| Gängdiameter | 20.96 mm |
| Antal trådar per tum | 14 |
| Burtjocklek | 14 mm |
| Typ | cutting plate |
| Slutbehandling | polerad |
Att visa UNSPSC/ECL@SS/Customs
1 221,21 kr Ex moms
/ Styck
1 526,51 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
