Referenser
Dormer:F1503/16
Rubix:6197682
EAN:7320760104750

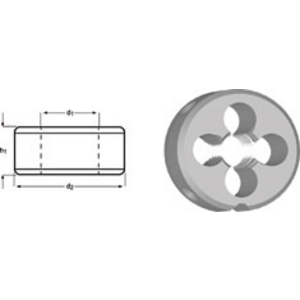

Produktinformation : BSF Gängsnitt, Spåndrivande Skär, F1503/16 - 5977849 - DORMER
HSS cutting insert for BSF thread DIN-EN 22568 for unalloyed steel <850 N/mm². Cast iron. Aluminium and aluminium-magnesium alloys Si <10%.
Användningsområden
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Lamellar cast iron (<150 HB >500 N/mm²)
• Lamellar cast iron (>150<300 HB >500<1000 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Aluminium-magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Lamellar cast iron (<150 HB >500 N/mm²)
• Lamellar cast iron (>150<300 HB >500<1000 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Aluminium-magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | bsf 3/16-32 |
|---|---|
| Burdiameter | 20 mm |
| Gänga | 4.76 mm |
| Material | hss |
| Tip tlačne zaloge | gun-nosed cutting insert (lead-in) |
| Diameter | 20 mm |
| Gängdiameter | 4.76 mm |
| Antal trådar per tum | 32 |
| Burtjocklek | 7 mm |
| Tolerans | medium tolerance class |
| Typ | gun nosed |
| Slutbehandling | polerad |
Att visa UNSPSC/ECL@SS/Customs
715,10 kr Ex moms
/ Styck
893,88 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
