Referenser
Dormer:F1307/8
Rubix:6197697
EAN:7320760104552

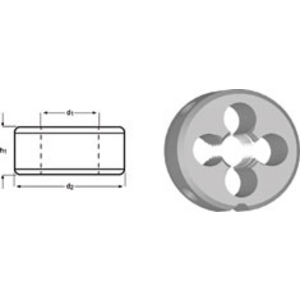

Produktinformation : UNF Gängsnitt, Spåndrivande Skär, F1307/8 - 5977894 - DORMER
HSS Cutting plate for UNF thread ISO 2568 for non-alloyed steel <850 N/mm². Cast iron. Aluminium en aluminium- magnesium alloys Si <10%.
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• aluminium magnesium non-alloyed (<100 HB <350 N/mm²)
• aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% <10% (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• aluminium magnesium non-alloyed (<100 HB <350 N/mm²)
• aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% <10% (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Burdiameter | 55 mm |
|---|---|
| Material | hss |
| Gängdiameter | 22.23 mm |
| Antal trådar per tum | 14 |
| Burtjocklek | 16 mm |
| Typ | gun nosed |
Att visa UNSPSC/ECL@SS/Customs
1 857,39 kr Ex moms
/ Styck
2 321,74 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
