Referenser
Dormer:E243PG9NO3
Rubix:6198863
EAN:7320760086711
Teknisk sammanfattning
| Gängning | pg9 |
|---|---|
| Gängdiameter | 15.2 mm |
| Typ | blinda och genomgående hål i metrisk storlek |

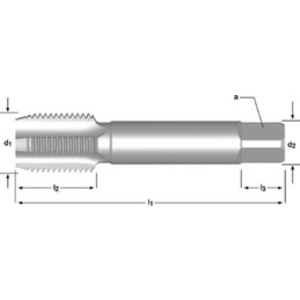

Produktinformation : Rakspårig handgängtapp av HSS, Pansarrör PG, ISO-standard, E243PG9NO3 - 5975850 - DORMER
HSS machine tap for PG thread uncoated DIN 40432 form straight flutes 1.5xD blind and through holes for general use in steel <1200 N/mm². Cast iron. Copper and brass. Aluminium alloys and duroplastics.
MACHINE TAP NO 9 PG E243 STRAIGHT NORMAL HSS
Användningsområden
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered (>250<350 HB >850<1200 N/mm²)
• Grey cast iron lamellar (<150 HB >500 N/mm²)
• Grey cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Beta-brass / bronze (<200 HB <700 N/mm²)
• Alpha-brass (<200 HB <700 N/mm²)
• Aluminium alloyed with silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed with silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Duroplastics
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered (>250<350 HB >850<1200 N/mm²)
• Grey cast iron lamellar (<150 HB >500 N/mm²)
• Grey cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Beta-brass / bronze (<200 HB <700 N/mm²)
• Alpha-brass (<200 HB <700 N/mm²)
• Aluminium alloyed with silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed with silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Duroplastics
Teknisk information
Attribut
| Gängning | pg9 |
|---|---|
| Gängdiameter | 15.2 mm |
| Typ | blinda och genomgående hål i metrisk storlek |
| Med kylspray | nej |
| Borrdiameter | 13.9 mm |
| Fyrkantsadapter | 12 mm |
| Beläggning | bright |
| Total längd | 70 mm |
| Material | hss |
Att visa UNSPSC/ECL@SS/Customs
933,31 kr Ex moms
/ Styck
1 166,64 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
