Referenser
Dormer:F1701/8
Rubix:6197672
EAN:7320760104866

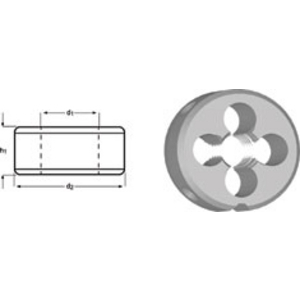

Produktinformation : G(BSP) Gängsnitt, Spåndrivande Skär, F1701/8 - 5977734 - DORMER
HSS cutting plate for gas thread ISO 2568 for non-alloyed steel <850 N/mm². Cast iron Aluminium en aluminium- magnesium alloys Si <10%.
FILIERE 1/8 BSP F170 30 CLASS A HSS
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | 1/8 |
|---|---|
| Burdiameter | 30 mm |
| Gänga | 0.91 mm |
| Material | hss |
| Diameter | 9.73 mm |
| Gängdiameter | 9.73 mm |
| Antal trådar per tum | 28 |
| Burtjocklek | 11 mm |
| Typ | cutting plate |
| Slutbehandling | polerad |
Att visa UNSPSC/ECL@SS/Customs
876,65 kr Ex moms
/ Styck
1 095,81 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
