Referenser
Dormer:F108M12
Rubix:6197768
EAN:7320760381366

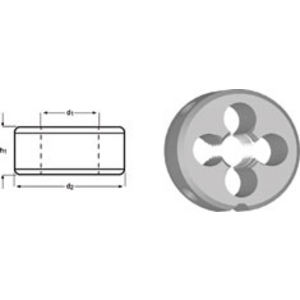

Produktinformation : M Gängsnitt, Spåndrivande Skär, F108M12 - 5978529 - DORMER
HSS-E cutting plate for metric thread ISO 2568 for steel <850 N/mm². Stainless steel and austenitic stainless steel. Cast iron Aluminium en aluminium- magnesium alloys Si <10%.
FILIERE MAIN M 12 X 1.75 F108 38 6G HSS
Användningsområden
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | m12 |
|---|---|
| Burdiameter | 38 mm |
| Gänga | 1.75 mm |
| Material | hss-e |
| Burtjocklek | 14 mm |
| Typ | cutting plate |
Att visa UNSPSC/ECL@SS/Customs
1 100,46 kr Ex moms
/ Styck
1 375,57 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
