Referenser
Dormer:EX403/8
Rubix:6188169
EAN:7320760168561
Teknisk sammanfattning
| Gängning | g 3/8 |
|---|---|
| Gängdiameter | 16.662 mm |
| Typ | brittiska genomgående hål |

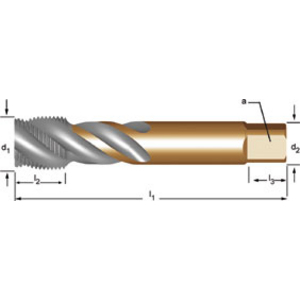

Produktinformation : GÄNGTAPP 3/8 inchx19 HSS-E BLANK DIN 5156 - EX403/8 - DORMER
HSS-E Machine tap for gas thread uncoated DIN 5156 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Copper Brass en bronze <200 HB. Aluminium and aluminium-magnesium alloys.
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | g 3/8 |
|---|---|
| Gängdiameter | 16.662 mm |
| Typ | brittiska genomgående hål |
| Med kylspray | nej |
| Gängriktning | rätt |
| Borrdiameter | 15.25 mm |
| Diameter fäste | 9 mm |
| Fyrkantsadapter | 12 mm |
| Gängdjup | 15 mm |
| Helix vinkel | 45 ° |
| Beläggning | blank |
| Total längd | 100 mm |
| Material | hss-e |
| Gängning | g 3/8 |
| Antal trådar per tum | 19 |
Att visa UNSPSC/ECL@SS/Customs
