Referenser
Dormer:EX201
Rubix:6188209
EAN:7320760150405
Teknisk sammanfattning
| Gängning | unc 1'-8 |
|---|---|
| Gängdiameter | 25.4 mm |
| Typ | amerikanska blinda hål |

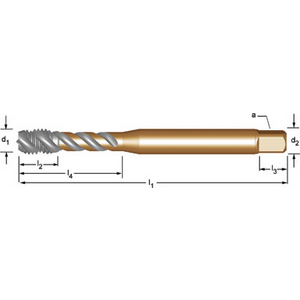

Produktinformation : UNC Maskingängtappar Spiralspår 45°, EX201 - 5973671 - DORMER
HSS-E Machine thread-cutter for UNC thread uncoated DIN 2184-1 shape C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Copper. Brass en bronze <200 HB. Aluminium and aluminium-magnesium alloys.
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• aluminium magnesium non-alloyed (<100 HB <350 N/mm²)
• aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% <10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• aluminium magnesium non-alloyed (<100 HB <350 N/mm²)
• aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% <10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
Teknisk information
Attribut
| Gängning | unc 1'-8 |
|---|---|
| Gängdiameter | 25.4 mm |
| Typ | amerikanska blinda hål |
| Med kylspray | nej |
| Gängriktning | rätt |
| Borrdiameter | 22.25 mm |
| Fyrkantsadapter | 18 mm |
| Gängdjup | 30 mm |
| Helix vinkel | 45 ° |
| Beläggning | blank |
| Total längd | 160 mm |
| Material | hss-e |
| Antal trådar per tum | 8 |
Att visa UNSPSC/ECL@SS/Customs
2 530,66 kr Ex moms
/ Styck
3 163,32 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
