Referenser
Dormer:S7105.0
Rubix:6186824
EAN:7320760685372
Produktinformation : Pinnfräsar, S7105.0 - 6706988 - DORMER
VHM 2 cutter key-way cutter with short cutting edge and extending length. DIN 6335 HA cylindrical shaft. 40° spiral and 10° cutter angle. AlCrN coated for steel <1200 N/mm². Stainless steel <850 N/mm². Cast iron. Titanium and nickel alloys <900 N/mm².
Användningsområden
• Soft steel machine steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB>850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Cast Iron lamellar (<150 HB>500 N/mm²)
• Cast Iron lamellar (>150<300 HB>500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB>700<1000 N/mm²)
• Titanium alloy (<270 HB <900 N/mm²)
• Nickel alloy (<270 HB>900 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB>850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Cast Iron lamellar (<150 HB>500 N/mm²)
• Cast Iron lamellar (>150<300 HB>500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB>700<1000 N/mm²)
• Titanium alloy (<270 HB <900 N/mm²)
• Nickel alloy (<270 HB>900 N/mm²)

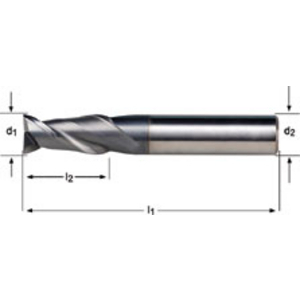

Teknisk information
Attribut
| Diameter | 5 mm |
|---|---|
| Typ av fäste | ha |
| Diameter fäste | 6 mm |
| Antal tänder | 2 |
| Klipplängd | 15 mm |
| Total längd | 50 mm |
| Mittskär | centre cut |
| Skärmaterial | karbid |
| Beläggning | alcrn |
| Typ | type n (short length end mill) |
| Helix vinkel | 40 ° |
| Bearbetning av material | steel, stainless steel. cast iron, titanium and nickel alloys |
| Kapacitet längd | 15 mm |
| Skärvinkel | 40 ° |
Att visa UNSPSC/ECL@SS/Customs
607,72 kr Ex moms
/ Styck
759,65 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
