Kabelsax Knipex 95 61 190 SB

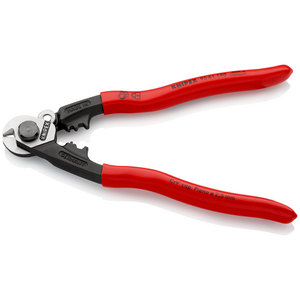

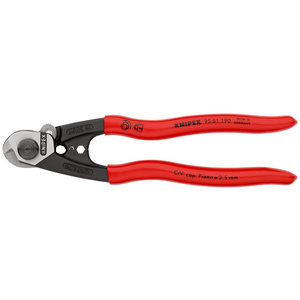

95 61 190 Wire Rope Cutter
With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC.

Cutting capacity copper cable, multiple-stranded: 10 mm²

Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm

Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm

Cutting capacities wire rope (diameter): Ø 5.0 mm

Cutting capacities medium hard wire (diameter): Ø 4.0 mm

Cutting capacities piano wire (diameter): Ø 2.5 mm

Cutting capacites iron (diameter): Ø 4 mm

AWG: 8

For medium hard wire up to 6 mmdia., e.g. Bowden cords, but also for cables and steel rods. With opening spring and locking device. Cutting edges additionally induction hardened. Special blade geometry prevents the wire rope fanning out. For hard wire ropes, also suitable for cables and round steel. With crimping functions e.g. for bicycle Bowden sheath and end caps and Bowden cable bush. Precise, smoothly-operating screw joint. Opening spring in the joint, protected and captive. With locking device. Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
