Referenser
Dormer:S7615.0
Rubix:6259360
EAN:7320760685471
Produktinformation : Pinnfräsar, S7615.0 - 6706998 - DORMER

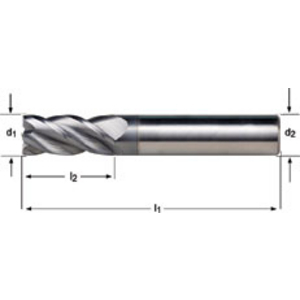

VHM 4-flute finger milling cutter with short cutting-edge and overhang length. Differential pitch. DIN 6335 HA cylindrical shank. 40° helix and 10° rake angle. AlCrN coated for steel <1200 N/mm². Stainless steel <850 N/mm². Cast iron. Titanium and nickel alloys <900 N/mm².
Användningsområden
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered (>250<350 HB >850<1200 N/mm²)
• Stainless free-cutting steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Cast iron - lamellar (<150 HB >500 N/mm²)
• Cast iron - lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron / malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Titanium alloy (<270 HB <900 N/mm²)
• Nickel alloy (<270 HB >900 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered (>250<350 HB >850<1200 N/mm²)
• Stainless free-cutting steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Cast iron - lamellar (<150 HB >500 N/mm²)
• Cast iron - lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron / malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Titanium alloy (<270 HB <900 N/mm²)
• Nickel alloy (<270 HB >900 N/mm²)
Teknisk information
Attribut
| Diameter | 5 mm |
|---|---|
| Typ av fäste | ha |
| Diameter fäste | 6 mm |
| Antal tänder | 4 |
| Klipplängd | 13 mm |
| Total längd | 57 mm |
| Skärmaterial | karbid |
| Beläggning | aluminum-chromium-nitride |
| Helix vinkel | 40 ° |
| Bearbetning av material | steel, stainless steel, cast iron, titanium and nickel alloys |
| Kapacitet längd | 13 mm |
| Skärvinkel | 10 ° |
Att visa UNSPSC/ECL@SS/Customs
750,29 kr Ex moms
/ Styck
937,86 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
