Referenser
Dormer:S93316.0
Rubix:6187761
EAN:7320760040188
Dokumenter

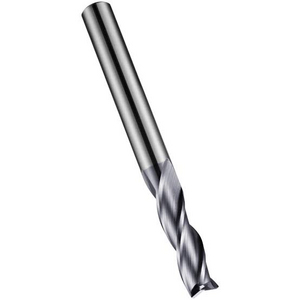

Produktinformation : SKAFTFRÄS SPÅRFRÄS 16.00mm SOLID HM TIALN - S93316.0 - DORMER
Micrograin carbide, with high hardness and toughness properties, for excellent wear resistance and long tool life. Flute cutters to cover contouring (semifinishing and finishing), ramping and slotting operations. TiAlN coating results in increased wear resistance and extended tool life compared to uncoated cutters of the same design. Reinforced end teeth to reduce chipping, particularly important on materials with low machinability
DRILL BIT 16.00 3D NORMAL S933 FINITION CW TIAIN
Styrkor
TiAlN coating
Slotting, ramping, diving mill direction
DORMER mill standard
HM material
Slotting, ramping, diving mill direction
DORMER mill standard
HM material
Användningsområden
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Ductile cast iron/malleable cast iron (<200 HB <700 N/mm²)
• Ductile cast iron/malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• nickel non-alloyed (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
Teknisk information
Attribut
| Diameter | 16 mm |
|---|---|
| Typ av fäste | weldon |
| Diameter fäste | 16 mm |
| Antal tänder | 3 |
| Klipplängd | 32 mm |
| Total längd | 92 mm |
| Mittskär | centre cut |
| Skärmaterial | karbid |
| Beläggning | tialn |
| Typ | regular length end mill (3-flute) |
| Helix vinkel | 30 ° |
| Bearbetning av material | steel, cast iron, titanium, nickel and copper alloys |
| Kapacitet längd | 32 mm |
| Skärvinkel | 30 ° |
Att visa UNSPSC/ECL@SS/Customs
2 008,33 kr Ex moms
/ Styck
2 510,41 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
