Referenser
Dormer:A1015.2
Rubix:6196626
EAN:7320760003015

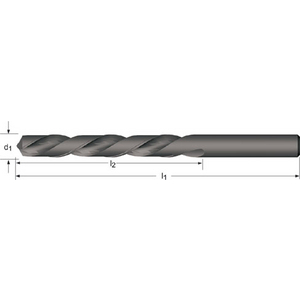

Produktinformation : STANDARDBORR 5.20mm HSS ÅNGANLÖPT DIN 338 - A1015.2 - DORMER
HSS short twist drill with cylindrical shank left-cutting DIN 338 N 118° steam-relieved 4xD for steel <850 N/mm² and cast iron.
Användningsområden
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Cast iron, lamellar (<150 HB >500 N/mm²)
• Cast iron, lamellar (>150<300 HB >500<1000 N/mm²)
• Thermoplastics, Plastics - Duroplasts
• Aluminium/Magnesium - Aluminium magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium/Magnesium - Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Cast iron, lamellar (<150 HB >500 N/mm²)
• Cast iron, lamellar (>150<300 HB >500<1000 N/mm²)
• Thermoplastics, Plastics - Duroplasts
• Aluminium/Magnesium - Aluminium magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium/Magnesium - Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
Teknisk information
Attribut
| Borrdiameter | 5.2 mm |
|---|---|
| Total längd | 86 mm |
| Klipplängd | 52 mm |
| Skafttyp | cylindrisk |
| Din standard | din 338 |
| Beläggning | steam tempered |
| Bearbetning av material | steel and cast iron |
| Skärmaterial | hss |
| Spetsvinkel | 118 ° |
| Diameter fäste | 5.2 mm |
Att visa UNSPSC/ECL@SS/Customs
950,50 kr Ex moms
/ 10 Styck
1 188,13 kr Inkl moms
- Tillgänglig – Leveransdatum på begäran
